Sanipump VX 50

Sanipump VX 50

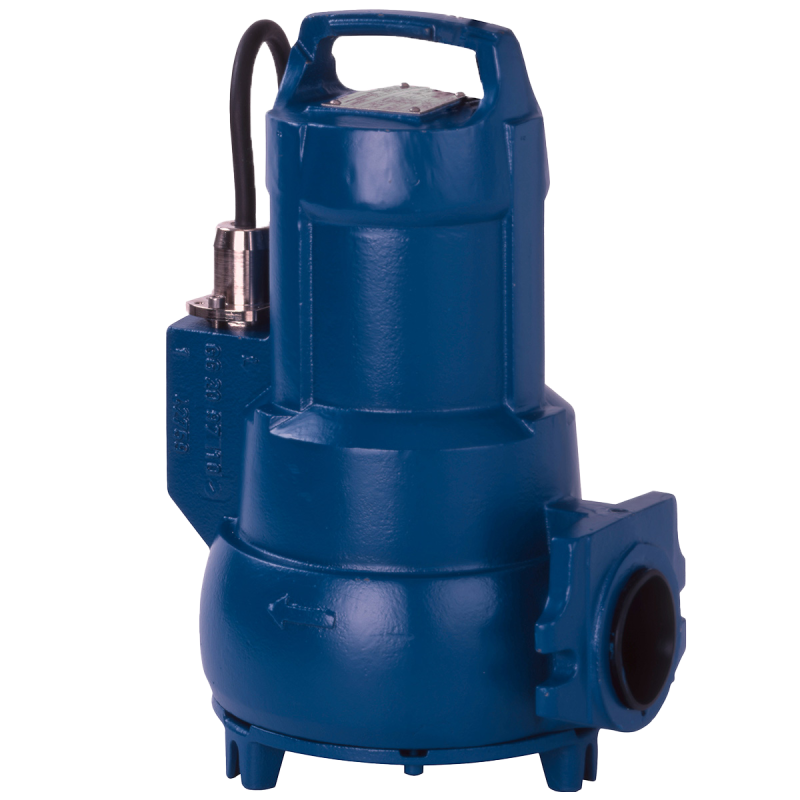

The Sanipump VX 50 is a cast iron submersible pump which can remove black water and rainwater up to a maximum height of 16 m and has a discharge diameter of DN 50.

  •  Vortex impeller
  •  DN 50 outlet
  •  12 versions, single and three-phase
  •  S1 mode (if motor fully submersed)
  •  Available in transportable or stationary version
€0.00

Thông tin sản phẩm

Your documents - Particular

Sanipump VX 50 can be installed in a manhole or a pit and is available as a portable or stationary version. Sanipump VX 50 is compatible with Sanifos 1600/2100/3100 and is available in 12 versions:8 single-phase (including 4 automatic) and 4 three-phase.

Sanipump VX 50.1 S Sanipump VX 50.1 SA Sanipump VX 50.1 T Sanipump VX 50.2 S Sanipump VX 50.2 SA Sanipump VX 50.2 T Sanipump VX 50.3 S Sanipump VX 50.3 SA Sanipump VX 50.3 T Sanipump VX 50.4 S Sanipump VX 50.4 SA Sanipump VX 50.4 T
Materials
Shaft Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel
Pump housing EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250
Sealing on motor side Shaft seal ring Shaft seal ring Shaft seal ring Shaft seal ring Shaft seal ring Shaft seal ring Shaft seal ring Shaft seal ring Shaft seal ring Shaft seal ring Shaft seal ring Shaft seal ring
Fluid sealing SIC/AI203 SIC/AI203 SIC/AI203 SIC/AI203 SIC/AI203 SIC/AI203 SIC/AI203 SIC/AI203 SIC/AI203 SIC/AI203 SIC/AI203 SIC/AI203
Motor housing EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250
Impeller EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250 EN-GJL-250
Electrical Specifications
Voltage 230 V 230 V 400 V 230 V 230 V 400 V 230 V 230 V 400 V 230 V 230 V 400 V
Frequency 50-60 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
Power input P1 1000 W 1000 W 900 W 1250 W 1250 W 1100 W 1800 W 1800 W 1500 W 1800 W 1800 W 2050 W
Power output P2 550 W 550 W 550 W 750 W 750 W 750 W 1100 W 1100 W 1100 W 1100 W 1100 W 1500 W
Motor Speed (RPM) 2800 2800 2800 2800 2800 2800 2800 2800 2800 2800 2800 2800
Electrical class I I I I I I I I I I I I
Motor insulation class F F F F F F F F F F F F
Submerged service S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Max. number of starts per hour 15 15 15 15 15 15 15 15 15 15 15 15
Immersion depth 10 m 10 m 10 m 10 m 10 m 10 m 10 m 10 m 10 m 10 m 10 m 10 m
Power cable: Length 10 m 10 m 10 m 10 m 10 m 10 m 10 m 10 m 10 m 10 m 10 m 10 m
Power cable: Type, Section H07 RN8-F, 3x1 mm2 S1BN8-F, 1,5 mm² H07 RN8-F, 4x1 mm2 H07 RN8-F, 3x1 mm2 H07 RN8-F, 3x1 mm2 H07 RN8-F, 4x1 mm2 H07 RN8-F, 3x1 mm2 H07 RN8-F, 3x1 mm2 H07 RN8-F, 4x1 mm2 H07 RN8-F, 3x1 mm2 H07 RN8-F, 3x1 mm2 H07 RN8-F, 4x1 mm2
Hydrolic
Max. head 9 m 9 m 9 m 12 m 12 m 12 m 14 m 14 m 14 m 16 m 16 m 16 m
Max. flow rate 20 m³/h 20 m³/h 20 m³/h 23 m³/h 23 m³/h 23 m³/h 25,5 m³/h 25,5 m³/h 25,5 m³/h 29 m³/h 29 m³/h 29 m³/h
Discharge diameter DN 50 50 50 50 50 50 50 50 50 50 50 50
Particle size 45 mm 45 mm 45 mm 45 mm 45 mm 45 mm 43 mm 43 mm 43 mm 41 mm 41 mm 41 mm
Max. permissible temperature of the pumped liquid 40 °C (5 min) 40 °C (5 min) 40 °C (5 min) 40 °C (5 min) 40 °C (5 min) 40 °C (5 min) 40 °C (5 min) 40 °C (5 min) 40 °C (5 min) 40 °C (5 min) 40 °C (5 min) 40 °C (5 min)
Type of impeller Vortex wheel Vortex wheel Vortex wheel Vortex wheel Vortex wheel Vortex wheel Vortex wheel Vortex wheel Vortex wheel Vortex wheel Vortex wheel Vortex wheel
Type of activation - Float - - Float - - Float - - Float -
Identification & Logistic
Gross weight 22 kg 23 kg 22 kg 23 kg 23 kg 23 kg 23 kg 23 kg 22 kg 23 kg 23 kg 23 kg
EAN Code 3308815090139 3308815090146 3308815090153 3308815090160 3308815090177 3308815090184 3308815090191 3308815090207 3308815090214 3308815090221 3308815090238 3308815090245
Product code 31012 31013 31014 31015 31016 31017 31018 31019 31020 31021 31022 31023
