The SANICUBIC®1 VX is a lifting station with 1 IP68 certified motor, equipped with a Vortex KX V6 wheel system that reduces the risk of clogging.
The SANICUBIC

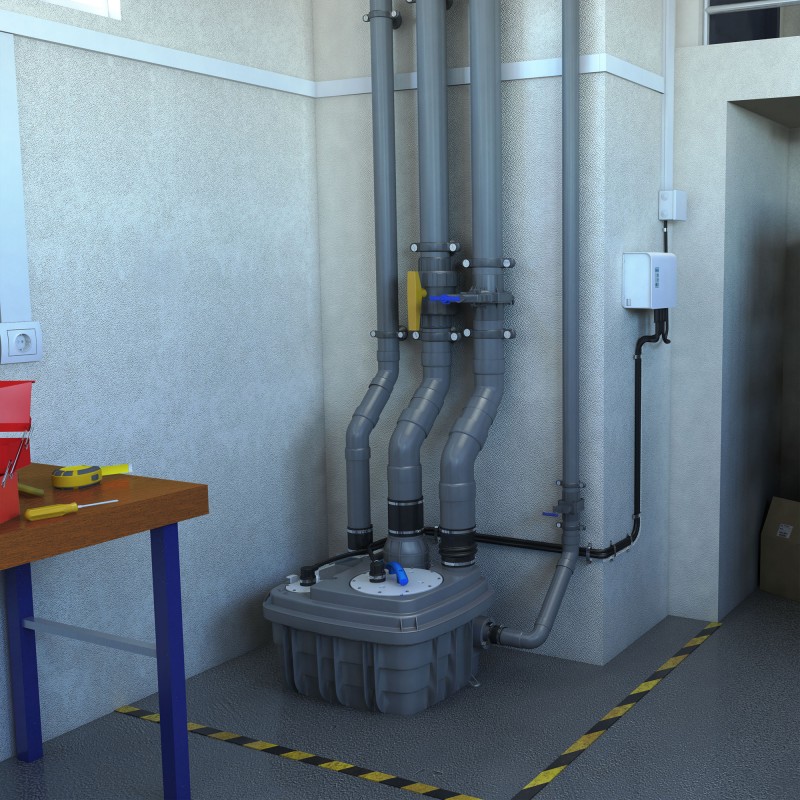

The SANICUBIC®1 VX is a lifting station with 1 IP68 certified motor, equipped with a Vortex KX V6 wheel system that reduces the risk of clogging. The SANICUBIC®1 VX has been specially developed for individual use (detached houses, small commercial premises) and collects all wastewater from toilets, bathrooms, kitchens or laundry rooms. The SANICUBIC®1 VX has direct and secure access to the motor and level sensors. The station is delivered as standard with a remote control box as well as an audible and visual alarm box. This lifting station is manufactured in France in the SFA factory in Brégy (60). It thus benefits from the Origine France Garantie label.
Show more
Sanicubic 1 VX | |||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Order type | Classic control box | ||||||||||||||||||||||||||||||||||||||||||||||||
Materials | |||||||||||||||||||||||||||||||||||||||||||||||||
Tank | PP GF | ||||||||||||||||||||||||||||||||||||||||||||||||
Pump body | PA 12 GF | ||||||||||||||||||||||||||||||||||||||||||||||||
Motor body | PA 12 GF | ||||||||||||||||||||||||||||||||||||||||||||||||
Wheel | PPO GF | ||||||||||||||||||||||||||||||||||||||||||||||||
Electrical Specifications | |||||||||||||||||||||||||||||||||||||||||||||||||
Voltage | 230 V | ||||||||||||||||||||||||||||||||||||||||||||||||
Frequency | 50-60 Hz | ||||||||||||||||||||||||||||||||||||||||||||||||
Power output P2 | 1400 W | ||||||||||||||||||||||||||||||||||||||||||||||||
Mode of operation | S3 15% | ||||||||||||||||||||||||||||||||||||||||||||||||
Protection class | IP68 | ||||||||||||||||||||||||||||||||||||||||||||||||
Hydrolic | |||||||||||||||||||||||||||||||||||||||||||||||||
Max. TDH | 13 m | ||||||||||||||||||||||||||||||||||||||||||||||||
Max. flow | 40 m³/h | ||||||||||||||||||||||||||||||||||||||||||||||||
Ext. inlets diameter | 40, 50, 100, 110, 125 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Discharge pipe diameter | 90/110 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Vent diameter | 75 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Total volume | 60 L | ||||||||||||||||||||||||||||||||||||||||||||||||
Effective volume | 21 L | ||||||||||||||||||||||||||||||||||||||||||||||||
ON/OFF level | 165/95 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Alarm level | 235 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Clearance | 50 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Max. permissible temperature of the pumped liquid | 70°C (5 min) | ||||||||||||||||||||||||||||||||||||||||||||||||
Wheel type | Vortex wheel | ||||||||||||||||||||||||||||||||||||||||||||||||
Type of interlocking | Pneumatic | ||||||||||||||||||||||||||||||||||||||||||||||||
Identification & Logistic | |||||||||||||||||||||||||||||||||||||||||||||||||
Gross weight | 30 kg | ||||||||||||||||||||||||||||||||||||||||||||||||
EAN Code | 3308815077611 | ||||||||||||||||||||||||||||||||||||||||||||||||
Factory code | CUBIC1XLVX |
