Sanicubic 2 Classic

Sanicubic 2 Classic

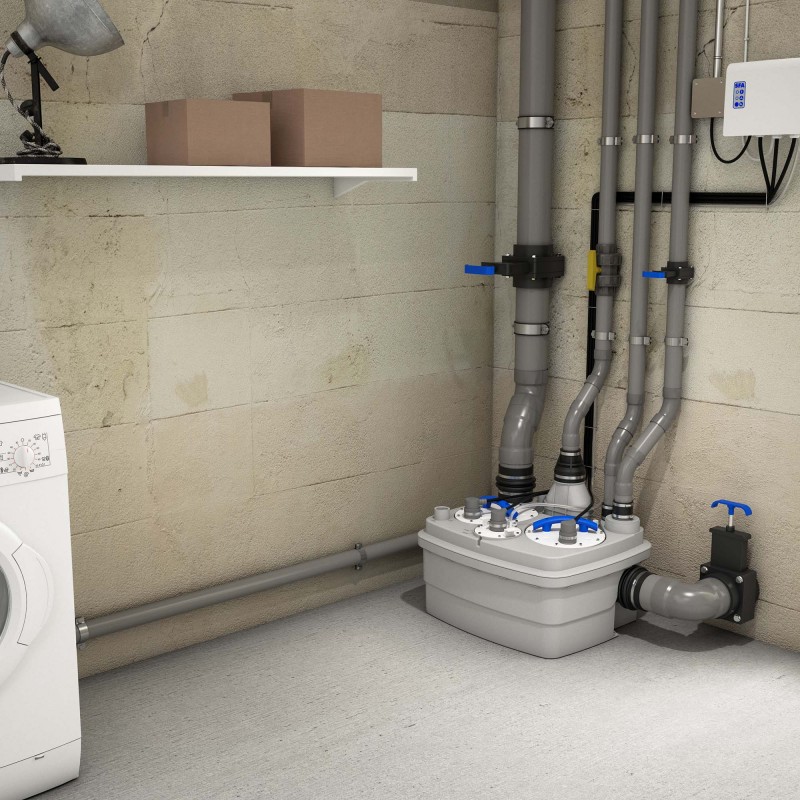

The SANICUBIC 2 Classic enables the removal of grey and black water from any business premises from a distant basement.

  • Discreet installation
  • Various configurations possible
  • Certified watertightness

CONTACT US:



€0.00

The SANICUBIC 2 Classic has ProX K2 shredder technology which reduces clogging. In addition, its two motors make it possible to remain in operation in all conditions. Lastly, its 5 inlets make it possible to connect it to all the sanitary facilities required. Other models in the SANICUBIC range are even more...

Show more

SANICUBIC 2 Classic datasheet

Sanicubic 2 Classic
Order type Classic control box
Materials
Tank PP
Pump housing PA 12 GF
Motor housing PA 12 GF
Impeller PP GF
Electrical Specifications
Voltage 230 V
Frequency 50-60 Hz
Power input P1 1500 W
Power output P2 1050 W
Mode of operation S3 50%
Protection class IP68
Hydrolic
Max. head 13 m
Max. flow rate 15 m³/h
Ext. inlets diameter 40, 50, 100, 110 mm
Discharge pipe diameter 50 mm
Vent diameter 50 mm
Total volume 45 L
Useable volume 17,5 L
ON/OFF level 140/70 mm
Alarm level 210 mm
Max. permissible temperature of the pumped liquid 70°C (5 min)
Type of impeller Dilatation wheel
Type of activation Pneumatic
Identification & Logistic
Gross weight 35 kg
EAN Code 3308815074443
Product code R4LCIP68NM
