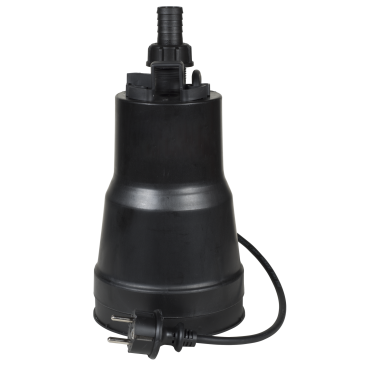

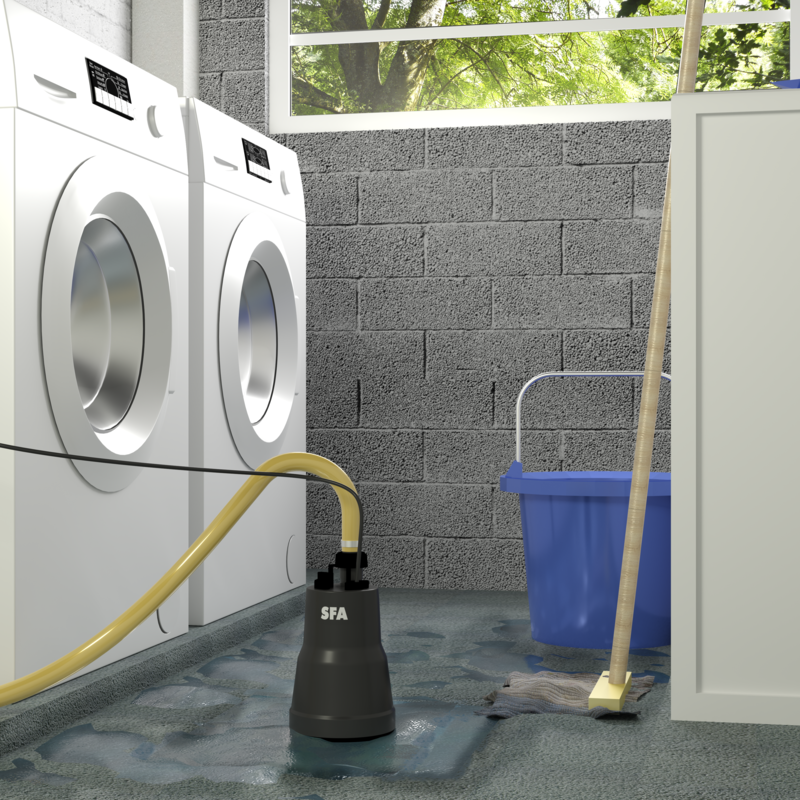

SANIPUDDLE FSP is a so-called mop pump because it leaves only a small millimeter of water that will be easily absorbed by a mop. Supplied with a 10M power cable with plug it is immediately operational once out of the box. Its lifting height of 7m makes it easy to empty cellars and garages, and its standard non-return valve and DN25 outlet...
Show more
Column 0 | |||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Application | Individual use | ||||||||||||||||||||||||||||||||||||||||||||||||
Materials | |||||||||||||||||||||||||||||||||||||||||||||||||
Pump body | PP GF | ||||||||||||||||||||||||||||||||||||||||||||||||
Shaft | Stainless steel | ||||||||||||||||||||||||||||||||||||||||||||||||
Waterproofing | Carbon/Ceramic/NBR | ||||||||||||||||||||||||||||||||||||||||||||||||
Motor body | Stainless steel | ||||||||||||||||||||||||||||||||||||||||||||||||
Wheel | PA 6 GF | ||||||||||||||||||||||||||||||||||||||||||||||||
Electrical Specifications | |||||||||||||||||||||||||||||||||||||||||||||||||
Voltage | 230 V | ||||||||||||||||||||||||||||||||||||||||||||||||
Frequency | 50-60 Hz | ||||||||||||||||||||||||||||||||||||||||||||||||
Power input P1 | 300 W | ||||||||||||||||||||||||||||||||||||||||||||||||
Power output P2 | 160 W | ||||||||||||||||||||||||||||||||||||||||||||||||
Motor Speed (RPM) | 2800 | ||||||||||||||||||||||||||||||||||||||||||||||||
Immersion depth | 5 m | ||||||||||||||||||||||||||||||||||||||||||||||||
Power cable: Length | 10 m | ||||||||||||||||||||||||||||||||||||||||||||||||

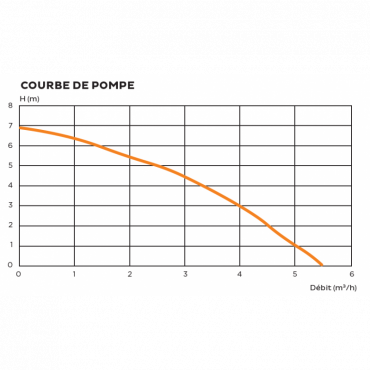

Hydrolic | |||||||||||||||||||||||||||||||||||||||||||||||||
Max. TDH | 7 m | ||||||||||||||||||||||||||||||||||||||||||||||||
Max. flow | 5.5 m³/h | ||||||||||||||||||||||||||||||||||||||||||||||||

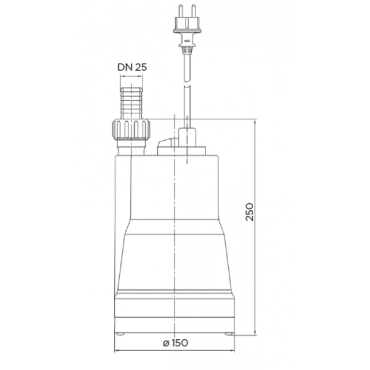

Discharge diameter G | 1 inch | ||||||||||||||||||||||||||||||||||||||||||||||||
Granulometry | 1 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Max. permissible temperature of the pumped liquid | 70°C (5 min) | ||||||||||||||||||||||||||||||||||||||||||||||||
Wheel type | Multi-channel wheel | ||||||||||||||||||||||||||||||||||||||||||||||||
Type of interlocking | Manual | ||||||||||||||||||||||||||||||||||||||||||||||||
Identification & Logistic | |||||||||||||||||||||||||||||||||||||||||||||||||
Gross weight | 3,77 kg | ||||||||||||||||||||||||||||||||||||||||||||||||
EAN Code | 3308815081427 | ||||||||||||||||||||||||||||||||||||||||||||||||
Factory code | SANIPUDDLE-001 |
