Effective Wastewater Solutions for Tam Anh Hospital Project in Ho Chi Minh City

In medical facilities and vaccination centers, collecting and pumping wastewater to treatment facilities is a critical requirement. At Tam Anh Hospital and VNVC Vaccination Center in Ho Chi Minh City, this task became particularly challenging due to the 50-meter distance from restrooms to the treatment area and limited construction conditions.

With concrete floors that cannot be drilled or cut to create natural slopes, traditional drainage systems were not a feasible solution. This called for an advanced approach that was both efficient and tailored to meet the unique technical requirements.

Challenges: Long Distance and Technical Constraints

Wastewater from toilets (blackwater) and sinks (greywater) at these facilities needed to be collected and pumped to a centralized treatment area. However, the concrete floor structure and the location of the restrooms made installing standard drainage pipes, which typically require floor drilling or structural alterations, impractical for this project.

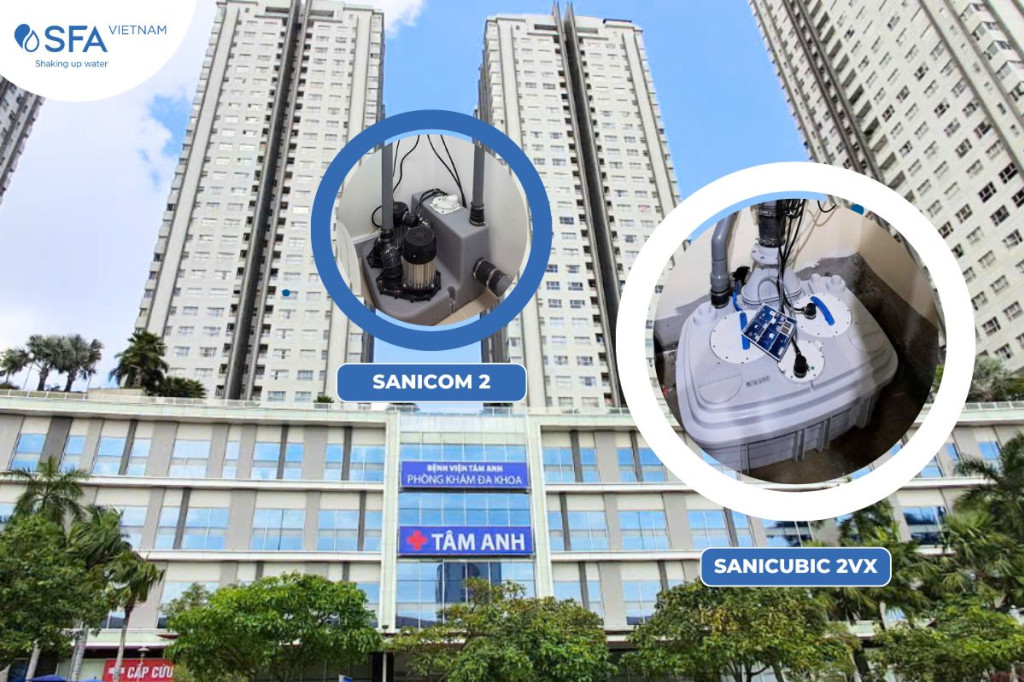

The Solution: Sanicubic 2VX and Sanicom 2 Pumping Stations

To address these challenges, SFA Vietnam provided two specialized pumping station models:

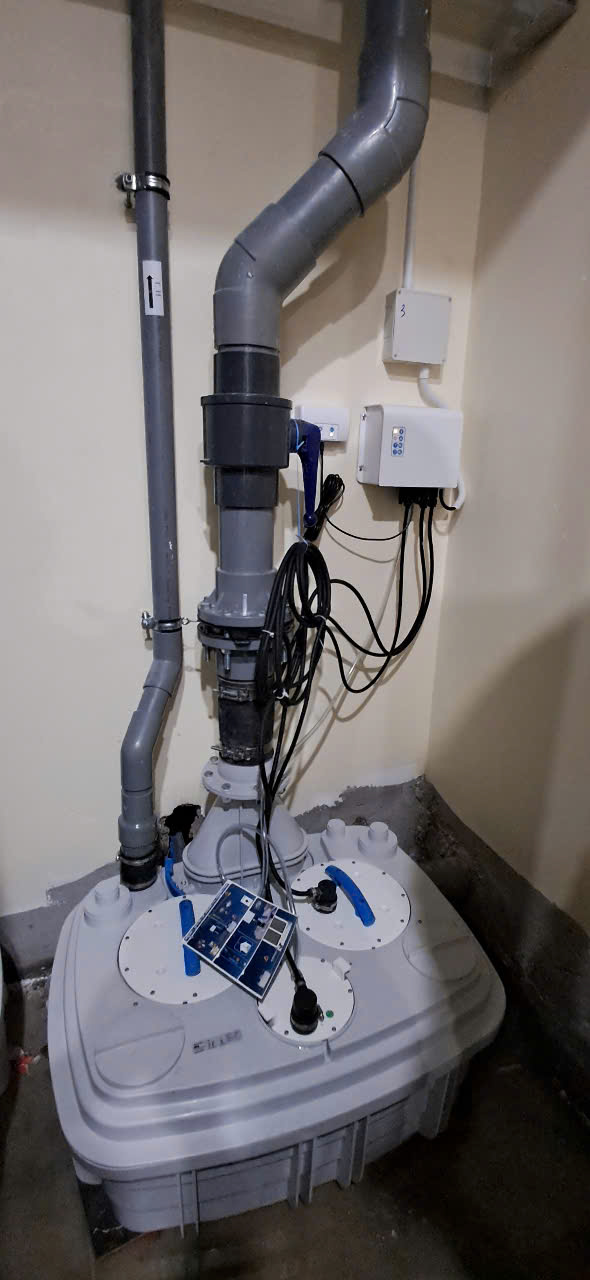

1. Sanicubic 2VX:

• Designed to collect and pump blackwater from toilets.
• Equipped with two powerful alternating motors to ensure high performance and durability.
• Easy to install without requiring floor drilling.

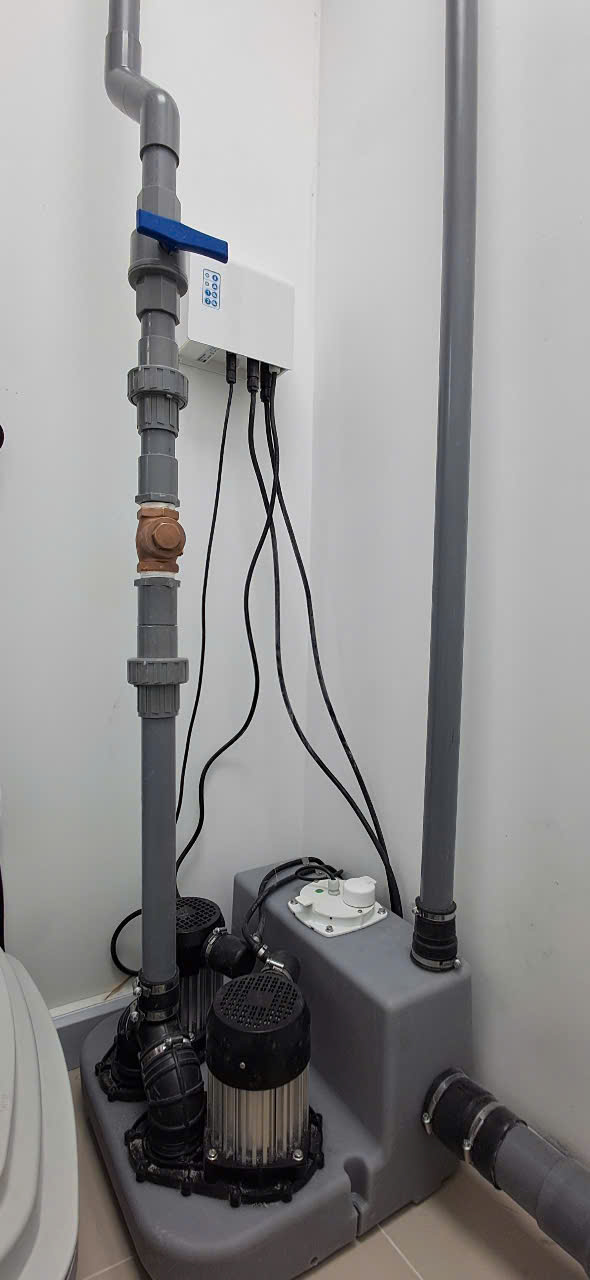

2. Sanicom 2:

• Suitable for collecting and pumping greywater from sinks.
• Features robust pumping capabilities for continuous and efficient operation.

Both pumping stations were directly connected to the restroom systems, ensuring wastewater was transported quickly and effectively to the treatment area, even over long distances.

Close Collaboration with TTT M&E SERVICE Contractor

Throughout the implementation at Tam Anh Hospital, SFA Vietnam worked closely with TTT M&E SERVICE. This collaboration ensured the precise installation of the pumping stations, seamless integration with other project systems, and adherence to all technical standards.

The SFA team worked together with TTT M&E SERVICE to conduct site surveys, design optimal installation plans, and perform thorough checks at every stage. Thanks to this efficient partnership, the pumping system was quickly deployed, saving time and ensuring the project remained on schedule.

Key Advantages of SFA’s Solution

• No floor drilling or major renovations required: The system’s design minimizes installation time and cost.

• High performance: Dual alternating motors increase durability and reduce the risk of breakdowns.

• Suitable for public and commercial spaces: Compact yet robust, the design meets high usage demands.

• Easy maintenance: Smart design allows for quick and simple maintenance.

Results: Efficient Wastewater Collection and Pumping

Following the deployment of Sanicubic 2VX and Sanicom 2 pumping stations, blackwater and greywater from Tam Anh Hospital and VNVC Vaccination Center were effectively collected and pumped to the centralized treatment area. This was achieved without complex construction or impacting the building's floor structure. The system operates stably, without interrupting the hospital and vaccination center’s daily operations.

The collaboration between SFA Vietnam and TTT M&E SERVICE ensured that the technical solutions were implemented precisely, delivering optimal performance.

Conclusion

SFA Vietnam’s pumping station solutions have demonstrated flexibility and efficiency in projects with challenging construction conditions. With products like Sanicubic 2VX and Sanicom 2, we provide optimal solutions for all types of facilities, ensuring quick and cost-effective wastewater collection and pumping.

If you’re looking for an efficient wastewater solution, contact SFA Vietnam for detailed consultation. We’re ready to support you in every project!

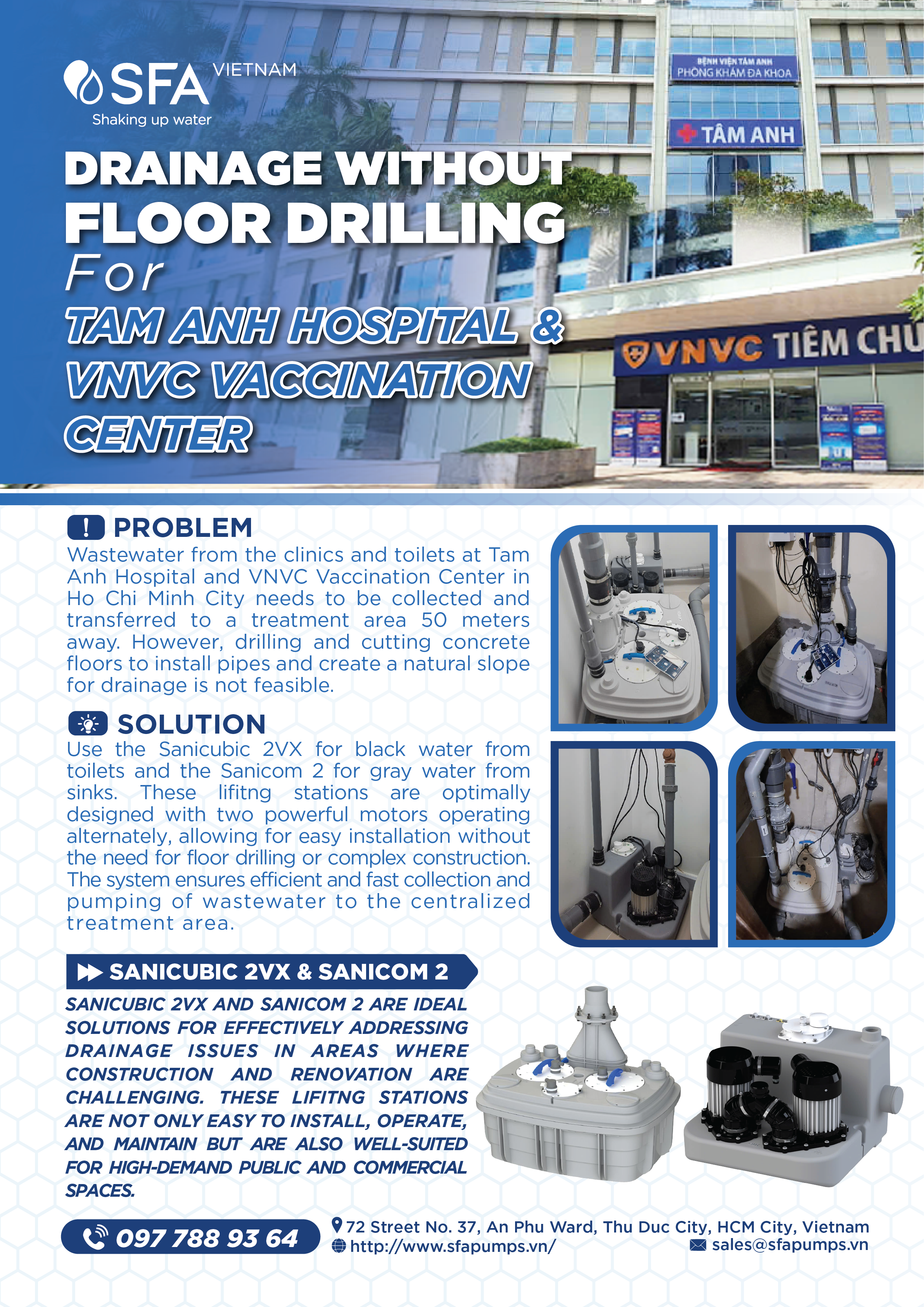

DOWNLOAD FULL PROJECT HERE
